Male Luer Lock Tip Adapter Fitting 1/4 Inch NPT Male Thread ...
Our precision
fittings offer safe and leak free connections from cartridges to
barrels and feed tubing. This useful adapter fitting attaches to our range
of cartridges for direct use of small dispensing tips and other
fittings. It is also used on spool valves.

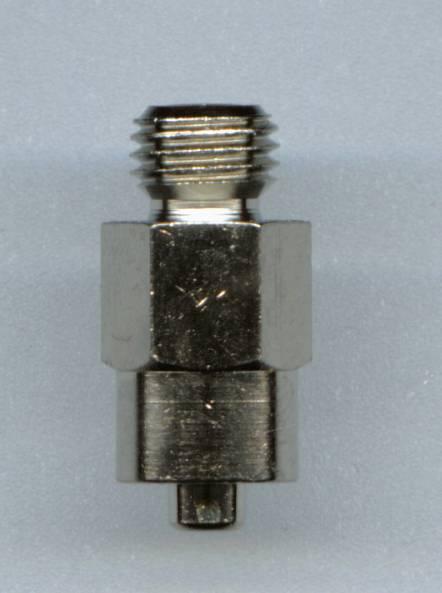

Male luer lock fitting to
1/4 Inch NPT thread. Nickel plated brass. Suitable for use with valves and tubing
and compatible with most adhesives, solvents, inks, gels,
chemicals, silicones, primers and activators. Supplied in a pack of 1.
Use as a tip adapter fitting on metering valves
TS941 and TS941A as well as with all
standard plastic
cartridges and other 1/4" fittings. If
using 310ml type silicone tubes, part
TSD931-296 or
TSD931-296SS is also required.
These items ship from our UK warehouse direct from
stock - no delays.
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all
assembly fluids - from watery liquids, solvents, primers and activators
through to thick pastes, sealants, silicones, gels and epoxies.
918-006-000 Fitting
Excludes
Carriage.
Lead Time: Usually Ships 24
Hours
Summary: Metal fitting for cartridge or
valve attachment.
Item
Qty
Price
GBP
Add
918-006-000
1
each
Specifications:
Materials: High Density Nickel Plated
Brass
Colour: Silver Length: 26mm Outer Diameter:
17mm Inner Diameter Inlet: 8mm
Inner Diameter Outlet: 3mm Connection Type: 1/4" NPT Male Thread Outlet Connection: Male Luer Lock Maximum Pressure: 100 PSI (6.89 Bar) Flow Pattern: Straight Description: Tip adapter fitting
Features: Silicone-Free, Industrial Grade
Delivery: Products
shipped by courier on a tracked and
insured service for stock items.
Products on a
longer
lead time or built to order will be sent as soon as available. Customers are informed of
ship dates and updates.
Typical Applications:-
These fittings convert all industry cartridges with a 1/4 Inch NPT
Thread for use with luer lock tips and fittings.
Use with most
liquids, pastes, epoxies, gels, solvents, adhesives, fluxes, lubricants,
paints, inks, solder creams, braze pastes, UV cure and many more assembly fluids.
Fittings Pages
Silicone and chloride free material
Industrial grade safe to 100 psi
Resistant to aggressive fluids & solvents
High precision machine part
1/4 Inch NPT thread to luer lock
Compatible with industry standard cartridges
