Industrial Techkit Cartridges ...

Two component cartridge packaging, mixing and dispensing kits. The Techkit cartridge system allows materials to be mixed exactly without errors and then dispensed using standard applicator guns. This package can handle any mix ratio and any fluid viscosity. Filled kits can be stored over long periods.
Techkit cartridge Techcon Adhesive Dispensing

The Techkit is a compact and simple method of packaging two or three component resin systems into a 2 1/2, 6, 8, 20 ounce or 1/10 gallon cartridge. The kit mechanically separates the base and hardener until they are ready to be used.

An internal mixing head provides a thorough blend for all types of compounds. When the job has been completed, the entire package is disposed of: no clean up or physical contact with the resin. Reliability is increased with accurate compound ratios, complete mixing and proper application techniques.

  Barrier Type

For compounds with a volumetric ratio greater than 10 parts per 100. The catalyst and base are separated by an aluminium barrier formed over the mixing head. As the rod is pushed and turned, the foil breaks allowing the 2 parts to be blended and mixed with the head. Once mixed, the rod is simply removed and a dispensing nozzle is attached. It can then be placed into an applicator gun and dispensed.

Some barrier kits are available taped around the outside of the cartridge body to provide a more stable structure for shipping.
  Injection Type

For compounds with a volumetric ratio less than 10 parts per 100. The catalyst is contained inside the hollow valved mixing rod while the base material is inside the body of the cartridge. A ram rod is provided to push the catalyst from the hollow mixing rod into the main cartridge. Once mixed, the rod is simply removed and a dispensing nozzle is attached. It can then be placed into an applicator gun and dispensed.

All injection type kits use a ram rod which can also be ordered separately.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.


Techkit Mix Heads

   Techkit Mix Heads
Supplied in sealed packs

Attaches to the top of the dasher rod to ensure a thorough mixing inside the Techkit cartridge.
Size Part Code Type Style Colour Spec. Price GBP Add
10oz/ 310ml 110-340PK Mix Head Round Black Standard GBP    pk/50
10oz/ 310ml 110-340 Mix Head Round Black Standard GBP    pk/500
10oz/ 310ml 110-350PK Mix Head Round Black Foiled GBP    pk/50
10oz/ 310ml 110-350 Mix Head Round Black Foiled GBP    pk/500
2.5, 6, 8oz 600-200PK Mix Head Open White Standard GBP    pk/50
2.5, 6, 8oz 600-200 Mix Head Open White Standard GBP    pk/500
2.5, 6, 8oz 600-300PK Mix Head Wheel Black Standard GBP    pk/50
2.5, 6, 8oz 600-300 Mix Head Wheel Black Standard GBP    pk/500
2.5, 6, 8oz 600-310PK Mix Head Wheel Black Foiled GBP    pk/50
2.5, 6, 8oz 600-310 Mix Head Wheel Black Foiled GBP    pk/500
2.5, 6, 8oz 600-320PK Mix Head Circle Black Half Closed GBP    pk/50
2.5, 6, 8oz 600-320 Mix Head Circle Black Half Closed GBP    pk/500
2.5, 6, 8oz 600-330PK Mix Head Circle Black Half Close Foil GBP    pk/50
2.5, 6, 8oz 600-330 Mix Head Circle Black Half Close Foil GBP    pk/500
20oz 600-360PK Mix Head Wheel Black Sandard GBP    pk/50
20oz 600-360 Mix Head Wheel Black Standard GBP    pk/500
20oz 600-370PK Mix Head Wheel Black Foiled GBP    pk/50
20oz 600-370 Mix Head Wheel Black Foiled GBP    pk/500

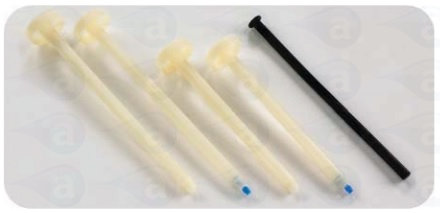

Techkit cartridge rods

   Techkit Rods
Supplied in sealed packs

 Used to attach the mix head and hollow when used to inject catalyst into resin.
Part Code Length Inches Length  mm Type Colour Spec. Price GBP Add
600-080 8 Inches 203.2 mm Ram Rod Black Nylon Rod GBP    pk/50
600-100 6 Inches 152.4mm Plugged Rod Natural Plugged Nylon GBP    pk/50
610-100 6 Inches 152.4mm Valved Rod Natural Nylon GBP    pk50
610-100A 6 Inches 152.4mm Valved Rod Natural With Piston GBP    pk50
800-100 8 Inches 203.2 mm Plugged Rod Natural Plugged Nylon GBP    pk/50
810-100 8 Inches 203.2 mm Valved Rod Natural Nylon GBP    pk/50
810-100A 8 Inches 203.2 mm Plugged Rod Natural With Piston GBP    pk/50
810-100PP 8 Inches 203.2 mm Valved Rod Natural Polypropylene GBP    pk/50
810-100PP-A 8 Inches 203.2 mm Valved Rod Natural With Piston GBP    pk/50


  Complete Techkit Cartridges
Supplied in sealed packs

Techkit cartridges supplied as complete ready to fill with materials, mix and dispense. Will handle any mix ratio and most viscosities. Mix manually or with an automatic mixer machine.
Size Part Code Type Cartridge Plunger Cap Mix Head Rod Ram Rod Price Add
10oz 110-80 Injection TS110C TS2P TS4C 110-340 810-100A 600-080    pk/50
10oz 110-81 Barrier TS110C TS2P TS4C 110-350 800-100 n/a    pk/50
10oz 110-81T Taped TS110C TS2P TS4C 110-350 800-100 n/a    pk/50
2.5oz 250-60 Injection TS25C TS1WP TS2C 600-200 610-100A 600-080    pk/50
2.5oz 250-61 Barrier TS25C TS1WP TS2C 600-310 600-100 n/a    pk/50
2.5oz 250-61T Taped TS25C TS1WP TS2C 600-310 600-100 n/a    pk/50
2.5oz 250-80 Injection TS25C TS1WP TS2C 600-200 810-100A 600-080    pk/50
2.5oz 250-81 Barrier TS25C TS1WP TS2C 600-310 810-100 n/a    pk/50
2.5oz 250-81T Taped TS25C TS1WP TS2C 600-310 810-100 n/a    pk/50
6oz 600-60 Injection TS60C TS1WP TS2C 600-200 610-100A 600-080    pk/50
6oz 600-61 Barrier TS60C TS1WP TS2C 600-310 600-100 n/a    pk/50
6oz 600-61T Taped TS60C TS1WP TS2C 600-310 600-100 n/a    pk/50
6oz 600-80 Injection TS60C TS1WP TS2C 600-200 810-100A 600-080    pk/50
6oz 600-81 Barrier TS60C TS1WP TS2C 600-310 800-100 n/a    pk/50
6oz 600-81T Taped TS60C TS1WP TS2C 600-310 800-100 n/a    pk/50
8oz 800-80 Injection TS80C TS1WP TS2C 600-200 810-100A 600-080    pk/50
8oz 800-81 Barrier TS80C TS1WP TS2C 600-310 810-100 n/a    pk/50
8oz 800-81T Taped TS80C TS1WP TS2C 600-310 810-100 n/a    pk/50
20oz 200-80 Injection TS20C TS20P TS6C 600-360 810-100A 600-080    pk/50
20oz 200-81 Barrier TS20C TS20P TS6C 600-370 810-100 n/a    pk/50
20oz 200-81T Taped TS20C TS20P TS6C 600-370 810-100 n/a    pk/50


TS6500 Automatic Techkit Semkit Mixer Adhesive Dispensing

   Techkit Cartridge Mixing Machines
Supplied with instructions

Automatic mixing machines designed to quickly mix materials inside the Techkit cartridges. Moves the cartridge mix rod up and down as the cartridge body rotates. The Model 1088 is a fully pneumatic version.
For Sizes Part Code Dimensions Inch Weight Voltage Motor Speed Price GBP Add
2.5, 6, 8 oz TS6500CIM-6 15.7 x 21 x 41 36 kg 110-220V 139 RPM GBP   each
2.5, 6, 8 oz TS6500CIM-RS-6 15.7 x 21 x 41 36 kg 110-220V 100 RPM GBP   each
20oz TS6500CIM-20 15.7 x 21 x 41 36 kg 110-220V 139 RPM GBP   each
2.5, 6, 8 oz Model 1088 16 x 22 x 40 35 kg n/a 100 RPM GBP POA POA


Nozzle Adhesive Dispensing Techcon

   Cartridge Nozzles
Supplied in sealed packs

Cartridge nozzles attach with a 1/4" NPT thread for leak free dispensing under high fluid pressures. Available in different lengths, styles and grades of plastic.

Length Part Code ID Inch ID mm Density Material Price GBP Add
Standard Nozzles
2.5 Inch (63.5mm) TS216 1/16 1.59 MDPE Polyethylene GBP    pk/10
2.5 Inch (63.5mm) TS218 1/8 3.20 MDPE Polyethylene GBP    pk/10
2.5 Inch (63.5mm) TS218-LD 1/8 3.20 LDPE Polyethylene GBP    pk/50
4.0 Inch (101.6mm) TS416 1/16 1.59 MDPE Polyethylene GBP    pk/10
4.0 Inch (101.6mm) TS416-LD 1/16 1.59 LDPE Polyethylene GBP    pk/10
4.0 Inch (101.6mm) TS418 1/8 3.20 MDPE Polyethylene GBP    pk/10
4.0 Inch (101.6mm) TS432 1/32 0.79 MDPE Polyethylene GBP    pk/10
4.0 Inch (101.6mm) TS432-LD 1/32 0.79 LDPE Polyethylene GBP    pk/50
4.0 Inch (101.6mm) TS490 3/32 2.38 MDPE Polyethylene GBP    pk/10
6.0 Inch (152.4mm) TS616 1/16 1.59 MDPE Polyethylene GBP    pk/10
6.0 Inch (152.4mm) TS618 1/8 3.20 MDPE Polyethylene GBP    pk/10
Length Part Code Width mm ID mm Density Material Price GBP Add
Ribbon Spreader Nozzles
4.0 Inch (101.6mm) TS1050 12.70 1.52 MDPE Polyethylene GBP    pk/10
4.0 Inch (101.6mm) TS1050-45 12.70 1.52 MDPE Polyethylene GBP    pk/10
4.5 Inch (114.3mm) TS1075 19.05 3.30 MDPE Polyethylene GBP    pk/10
4.4 Inch (111.7mm) TS1100 25.40 3.30 MDPE Polyethylene GBP    pk/10
4.4 Inch (111.7mm) TS1175 44.45 3.30 MDPE Polyethylene GBP    pk/10
Length Part Code Width mm Width Inch Brush Body Price GBP Add
Roller Nozzles
4.0 Inch (101.6mm) 232693 25.40 1.0 Nylon Polyethylene GBP    pk/1
4.0 Inch (101.6mm) 232692 50.80 2.0 Nylon Polyethylene GBP    pk/1

Delivery: Products shipped by courier on a tracked and insured service for stock items. Products on a longer lead time or built to order will be sent as soon as available. Customers are informed of ship dates.

Typical Applications:- Handling of different pastes, gels, adhesives, sealants, glues, epoxies, silicones & general adhesives.
