Dual Cartridge Kit 50ml Size 2:1 Mix Ratio |
|
|
|
High density dual component dispense cartridges for two part
adhesives, epoxies, silicones and other fluids. All sets are
supplied with matching pistons and a tip cap ready for filling and
dispensing. Use with our range of manual and pneumatic cartridges
guns. Industrial grade and silicone free. This version is for
materials with a 2 to 1 (by volume) mix ratio. |
|
|
|
|
|
The dual
system 50ml size with 2:1 mix ratio by volume. Materials are stored
in the two chambers of the dual cartridge system and are then
dispensed simultaneously into the static mixer, where dynamic mixing
takes place. Use these products with 2-part epoxies, resins,
sealants, silcones & polyurethanes.

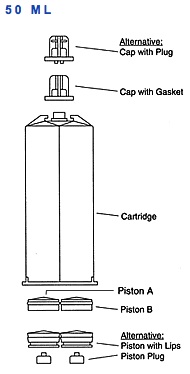

This cartridge is
manufactured in polypro. The kits come with the following parts:
- 50 x Cartridge 1:1 with capacity of 50ml max.
- 50
x Vented pistons with cap seal (large).
- 50 x Vented pistons
with cap seal (small).
- 50 x Dust tip cap.
The static mixer nozzles are available in different diameters
with different volumes and a variety of mixing elements. One of the
main benefits of the system is that not all of the contents of the
cartridge have to be mixed at a time. When use has stopped, the
nozzle is removed for disposal and the cartridge can be closed and
stored for further use, without the material curing.
Standard air-bleed pistons are shipped with this cartridge system
allowing for use with most two component materials. These dual
cartridge products are compatible with either
manual or
pneumatic dual cartridge
guns.
All products shipped are in sealed boxes or packs
that
include label with batch codes.
Adhesive Dispensing Ltd provide a wide range
of equipment options for dispensing almost all assembly fluids -
from watery liquids, solvents, primers and activators through to
thick pastes, sealants, silicones, gels and epoxies. |
|
|
|
|
|
|
|
|
|
|
|
|
| Specifications |
Material: Polypropylene Barrel
Body
Colour: White
Nozzle Attachment: Bayonet
Mix Ratio: 2:1 By Volume
Maximum Pressure:
100 PSI
Length: 104mm (not including tip cap)
Flow Pattern: Straight
Description: Dual Cartridge
Features: Silicone-Free/ Industrial Grade
Pack Sizes: 50 or 500
Commodity Code: 39269097 |
| |
Delivery: Products
shipped by courier on a tracked and
insured service for stock items. Products on a
longer
lead time or built to order will be sent as soon as available. Customers are informed of
ship dates.
Typical Applications:- Deposits of
epoxy resins, two-part silicones, PU Polyurethanes and many other 2-component
and mixed materials. |
|
|
|
|
|
|
|
|
A-System Static Mixer Nozzles |
|
More Info |
Part
Code |
Description |
Lead Time |
Price GBP |
Add |
 |
MA3.0-07S
Bayonet White
Round Mixer |
|
Mix Ratios:
1:1 and 2:1 |
| Number Of Elements:
7 |
| Inner Diameter:
3.0mm |
|
Length:
33mm |
|
Pack
Size: 100 Nozzles |
|
Ships Within 24 Hours |
pack |
 |
|
|
|
More Info |
Part
Code |
Description |
Lead Time |
Price GBP |
Add |
|
|
MA3.0-13S
Bayonet White
Round Mixer |
|
Mix Ratios:
1:1 and 2:1 |
| Number Of Elements:
13 |
| Inner Diameter:
3.0mm |
|
Length:
51mm |
|
Pack
Size: 100 Nozzles |
|
Ships Within 24 Hours |
pack |
|
|
|
|
More Info |
Part
Code |
Description |
Lead Time |
Price GBP |
Add |
|
|
MA3.0-17S
Bayonet White
Round Mixer |
|
Mix Ratios:
1:1 and 2:1 |
| Number Of Elements:
17 |
| Inner Diameter:
3.0mm |
|
Length:
62mm |
|
Pack
Size: 100 Nozzles |
|
Ships Within 24 Hours |
pack |
|
|
|
|
More Info |
Part
Code |
Description |
Lead Time |
Price GBP |
Add |
|
|
MA4.0-13S
Bayonet White
Round Mixer |
|
Mix Ratios:
1:1 and 2:1 |
| Number Of Elements:
13 |
| Inner Diameter:
4.0mm |
|
Length:
66mm |
|
Pack
Size: 100 Nozzles |
|
Ships Within 24 Hours |
pack |
|
|
|
|
More Info |
Part
Code |
Description |
Lead Time |
Price GBP |
Add |
|
|
MA4.0-17S
Bayonet White
Round Mixer |
|
Mix Ratios:
1:1 and 2:1 |
| Number Of Elements:
17 |
| Inner Diameter:
4.0mm |
|
Length:
82mm |
|
Pack
Size: 100 Nozzles |
|
Ships Within 24 Hours |
pack |
|
|
|
|
More Info |
Part
Code |
Description |
Lead Time |
Price GBP |
Add |
|
|
MA5.4-07S
Bayonet White
Round Mixer |
|
Mix Ratios:
1:1 and 2:1 |
| Number Of Elements:
7 |
| Inner Diameter:
5.4mm |
|
Length:
56mm |
|
Pack
Size: 100 Nozzles |
|
Ships Within 24 Hours |
pack |
|
|
|
|
More Info |
Part
Code |
Description |
Lead Time |
Price GBP |
Add |
|
|
MA5.4-13S
Bayonet White
Round Mixer |
|
Mix Ratios:
1:1 and 2:1 |
| Number Of Elements:
13 |
| Inner Diameter:
5.4mm |
|
Length:
85mm |
|
Pack
Size: 100 Nozzles |
|
Ships Within 24 Hours |
pack |
|
|
|
|
More Info |
Part
Code |
Description |
Lead Time |
Price GBP |
Add |
|
|
MA5.4-17S
Bayonet White
Round Mixer |
|
Mix Ratios:
1:1 and 2:1 |
| Number Of Elements:
17 |
| Inner Diameter:
5.4mm |
|
Length:
104mm |
|
Pack
Size: 100 Nozzles |
|
Ships Within 24 Hours |
pack |
|
|
|
|
More Info |
Part
Code |
Description |
Lead Time |
Price GBP |
Add |
|
|
MA5.4-21S
Bayonet White
Round Mixer |
|
Mix Ratios:
1:1 and 2:1 |
| Number Of Elements:
21 |
| Inner Diameter:
5.4mm |
|
Length:
124mm |
|
Pack
Size: 100 Nozzles |
|
Ships Within 24 Hours |
pack |
|
|
|
|
More Info |
Part
Code |
Description |
Lead Time |
Price GBP |
Add |
|
|
MA6.3-12S
Bayonet White
Round Mixer |
|
Mix Ratios:
1:1 and 2:1 |
| Number Of Elements:
12 |
| Inner Diameter:
6.3mm |
|
Length:
97mm |
|
Pack
Size: 100 Nozzles |
|
Ships Within 24 Hours |
pack |
|
|
|
|
More Info |
Part
Code |
Description |
Lead Time |
Price GBP |
Add |
|
|
MA6.3-17S
Bayonet White
Round Mixer |
|
Mix Ratios:
1:1 and 2:1 |
| Number Of Elements:
17 |
| Inner Diameter:
6.3mm |
|
Length:
128mm |
|
Pack
Size: 100 Nozzles |
|
Ships Within 24 Hours |
pack |
|
|
|
|
More Info |
Part
Code |
Description |
Lead Time |
Price GBP |
Add |
|
|
MA6.3-21S
Bayonet White
Round Mixer |
|
Mix Ratios:
1:1 and 2:1 |
| Number Of Elements:
21 |
| Inner Diameter:
6.3mm |
|
Length:
152mm |
|
Pack
Size: 100 Nozzles |
|
Ships Within 24 Hours |
pack |
|
|
|
|
More Info |
Part
Code |
Description |
Lead Time |
Price GBP |
Add |
|
|
MA6.3-21L
Bayonet White
Round Mixer |
|
Mix Ratios:
1:1 and 2:1 |
| Number Of Elements:
21 |
| Inner Diameter:
6.3mm |
|
Length:
152mm |
|
Pack
Size: 100 Nozzles |
|
Ships Within 24 Hours |
pack |
|
|
|
|
More Info |
Part
Code |
Description |
Lead Time |
Price GBP |
Add |
 |
MAQ05-16L
Bayonet Green
Square Mixer |
|
Mix Ratios:
1:1 and 2:1 |
| Number Of Elements:
16 |
| Inner Diameter:
5.3mm |
|
Length:
83mm |
|
Pack
Size: 100 Nozzles |
|
Ships Within 24 Hours |
pack |
|
|
|
|
More Info |
Part
Code |
Description |
Lead Time |
Price GBP |
Add |
|
|
MAQ05-24L
Bayonet Green
Square Mixer |
|
Mix Ratios:
1:1 and 2:1 |
| Number Of Elements:
24 |
| Inner Diameter:
5.3mm |
|
Length:
115mm |
|
Pack
Size: 100 Nozzles |
|
Ships Within 24 Hours |
pack |
|
|
|
|
More Info |
Part
Code |
Description |
Lead Time |
Price GBP |
Add |
 |
ABM-25M1
Manual Operated
Applicator Gun |
|
Cartridge Size:
50ml |
|
Mix Ratios:
1:1 and 2:1 |
|
Type: Hand
Operated Ratchet Gun |
|
For: Low to
Medium Viscosity 2K Materials |
|
Colour: Grey/ Black |
|
Ships Within 24 Hours |
each |
|
|
|
|
More Info |
Part
Code |
Description |
Lead Time |
Price GBP |
Add |
 |
ADCBE-50
Battery Operated
Applicator Gun |
|
Cartridge Size:
50ml |
|
Mix Ratios:
1:1 and 2:1 |
|
Type:
Rechargeable Cordless Gun |
|
For: All
Viscosity 2K Materials |
|
Colour: Grey/ Black |
|
Ships Within 24 Hours |
each |
|
|
|
|
More Info |
Part
Code |
Description |
Lead Time |
Price GBP |
Add |
 |
ADCBA-25D
Air Operated
Applicator Gun |
|
Cartridge Size:
50ml |
|
Mix Ratios:
1:1 and 2:1 |
|
Type: Pneumatic
Rod Driven Gun |
|
For: Low to
Medium Viscosity 2K Materials |
|
Colour: Grey/ Black |
|
Ships Within 24 Hours |
each |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
