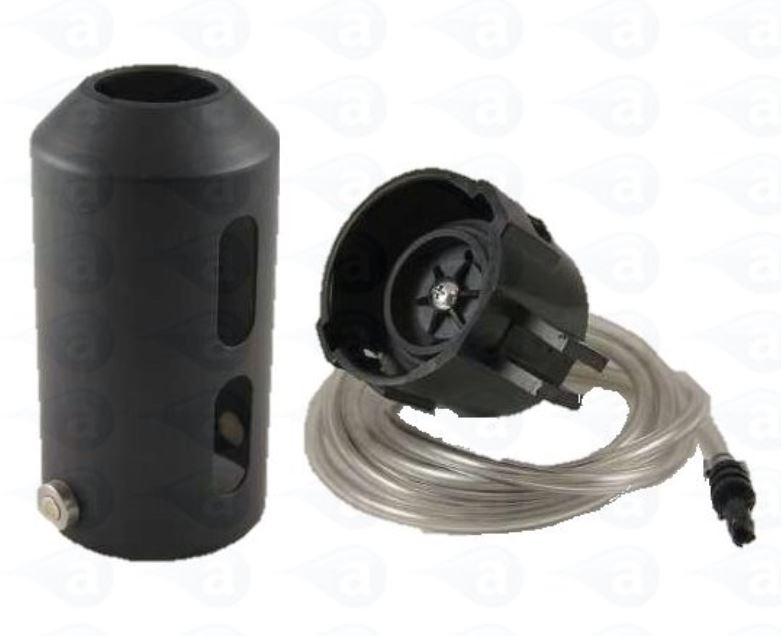

2.5 Ounce Size Cartridge Retainer, Air Cap & Hose |
|
|
|
Our precision
components provide safe and leak free fluid dispensing from
cartridges.
This aluminium retainer system is for
pressurising all 2.5 Ounce dispensing cartridges. A safe and leak free high
pressure reservoir system. |
|
|
|
|
|
A cartridge reservoir with cap and airline
hose for direct feed to any metering valve or for dispensing adhesives
and pastes directly from a timed dispenser. 2.5 Ounce (75cc/ml) total volume.
Supplied with a kit of cartridges, plungers, fittings and nozzle. Works
with all standard 2.5 Ounce cartridges.
Ideal for
pastes, grease, adhesives, compounds, UV's and other fluids. Easy
connect to any adjustable air regulator or air-powered dispenser.
Includes a bayonet air cap with gasket, aluminium
retainer body sleeve, airline hose with quick connect fitting, 2.5oz HDPE
cartridge, cartridge wiper plunger, cartridge end cap, cartridge tip
cap, threaded nozzle and a 1/4 Inch NPT to male luer lock tip adapter
fitting.
Adhesive Dispensing Ltd provide a wide range
of equipment options for dispensing almost all assembly fluids -
from watery liquids, solvents, primers and activators through to
thick pastes, sealants, silicones, gels and epoxies. |
|
|
|
|
|
|
Specifications
Materials: Aluminium, Steel, PU, Nylon
Colour: Black
Length: 101.60mm (4.0 Inch)
OD: 42.92mm (1.69 Inch)
Maximum Pressure: 100 PSI (6.89 Bar)
Flow Pattern: Straight
Description: Cartridge Feed System
Features: Silicone-Free, Industrial Grade
Pack Size: 1
Commodity Code: 90289090 |
|
|
|
|
Delivery: Products
shipped by courier on a tracked and
insured service for stock items. Products on a
longer
lead time or built to order will be sent as soon as available. Customers are informed of
ship dates.
Typical Applications:- Deposits
of solder paste or solder flux, grease to bearings, potting
components with epoxies, RTV to edge seams, silicone shots to bond
products, gasket sealant repair, aircraft maintenance work, braze
pastes, solvents, threadlockers, general
adhesive applications. |
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
| |
